Project Overview

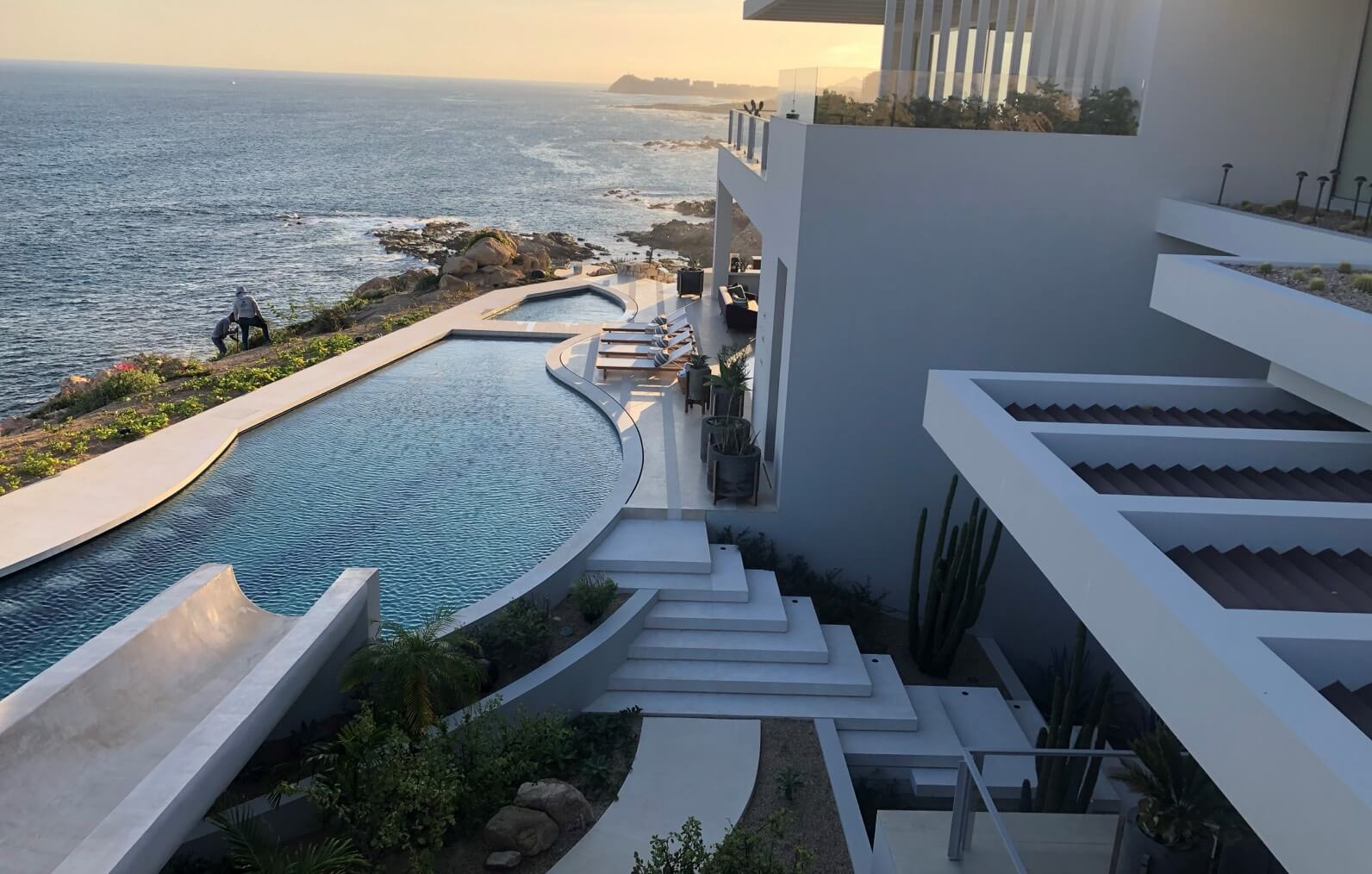

Maravilla Los Cabos is a luxury private residential community and resort located on the Sea of Cortez in southern Baja. With a focus on sustainable design and landscape integration, the resort includes 122 guestrooms and 52 whole-ownership residences. Following construction, persistent moisture infiltration led the development team to reassess their waterproofing systems.
The Challenge

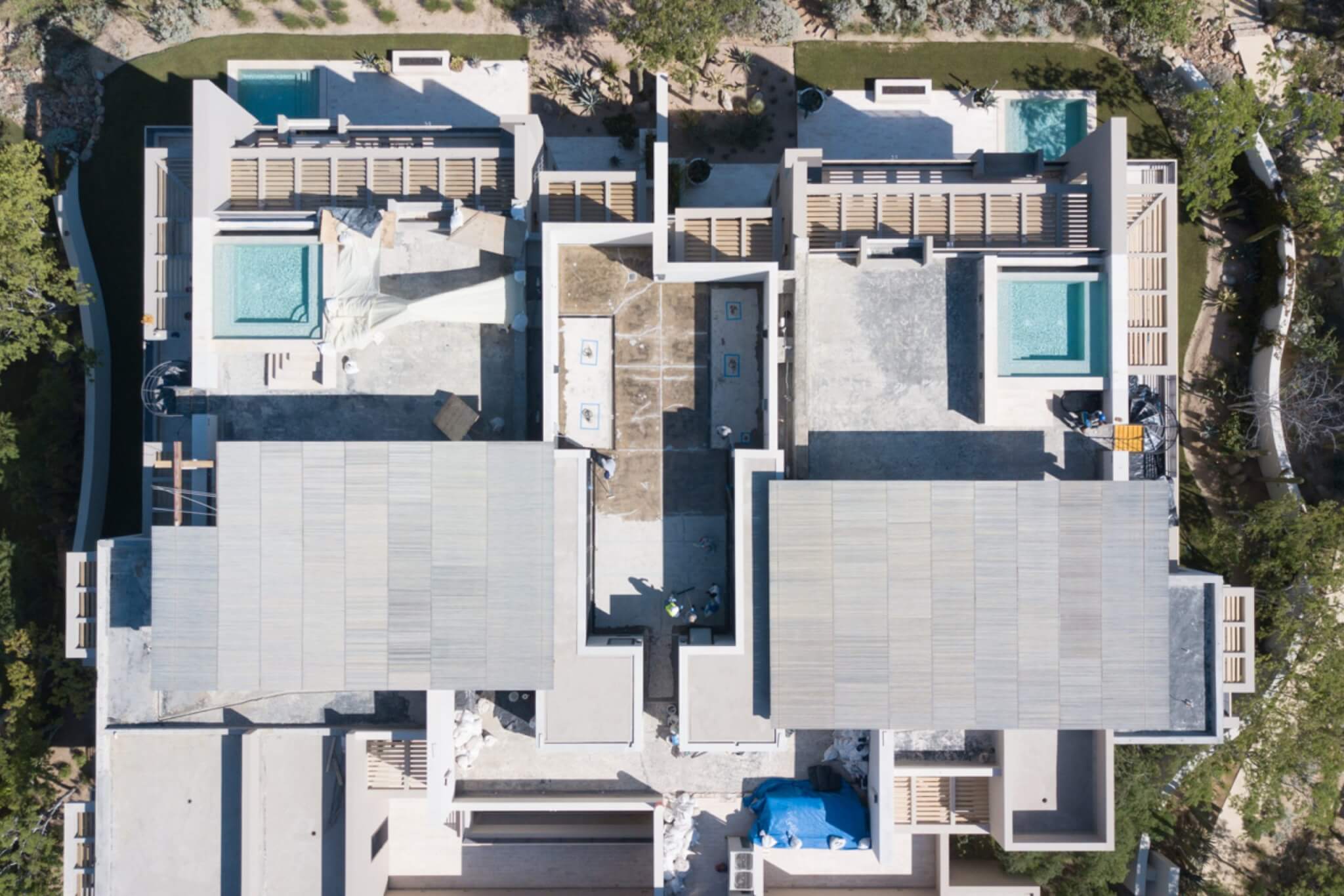

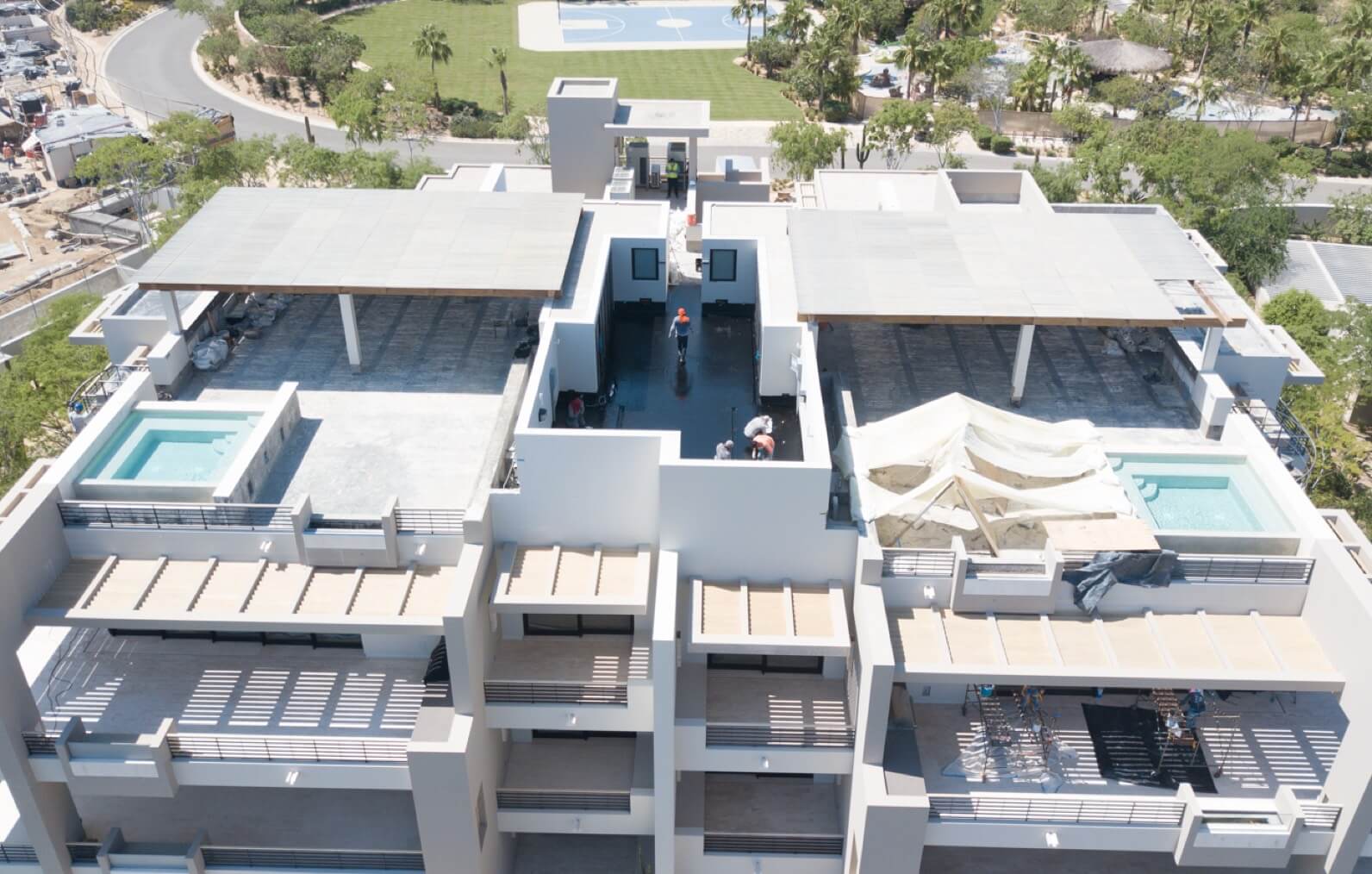

Post-construction, multiple rooftop terraces and planter areas began showing signs of leakage. The original waterproofing failed due to material rigidity, poor drainage design and inadequate detailing. With many surfaces near submerged pools and spas, demolition wasn’t an option — so a durable, submersible, seamless waterproofing system was required.
Project Requirements
- Waterproofing under standing water
- Continuous protection in rooftop planters
- Removal of failing tile, membranes and drains
Our Solution

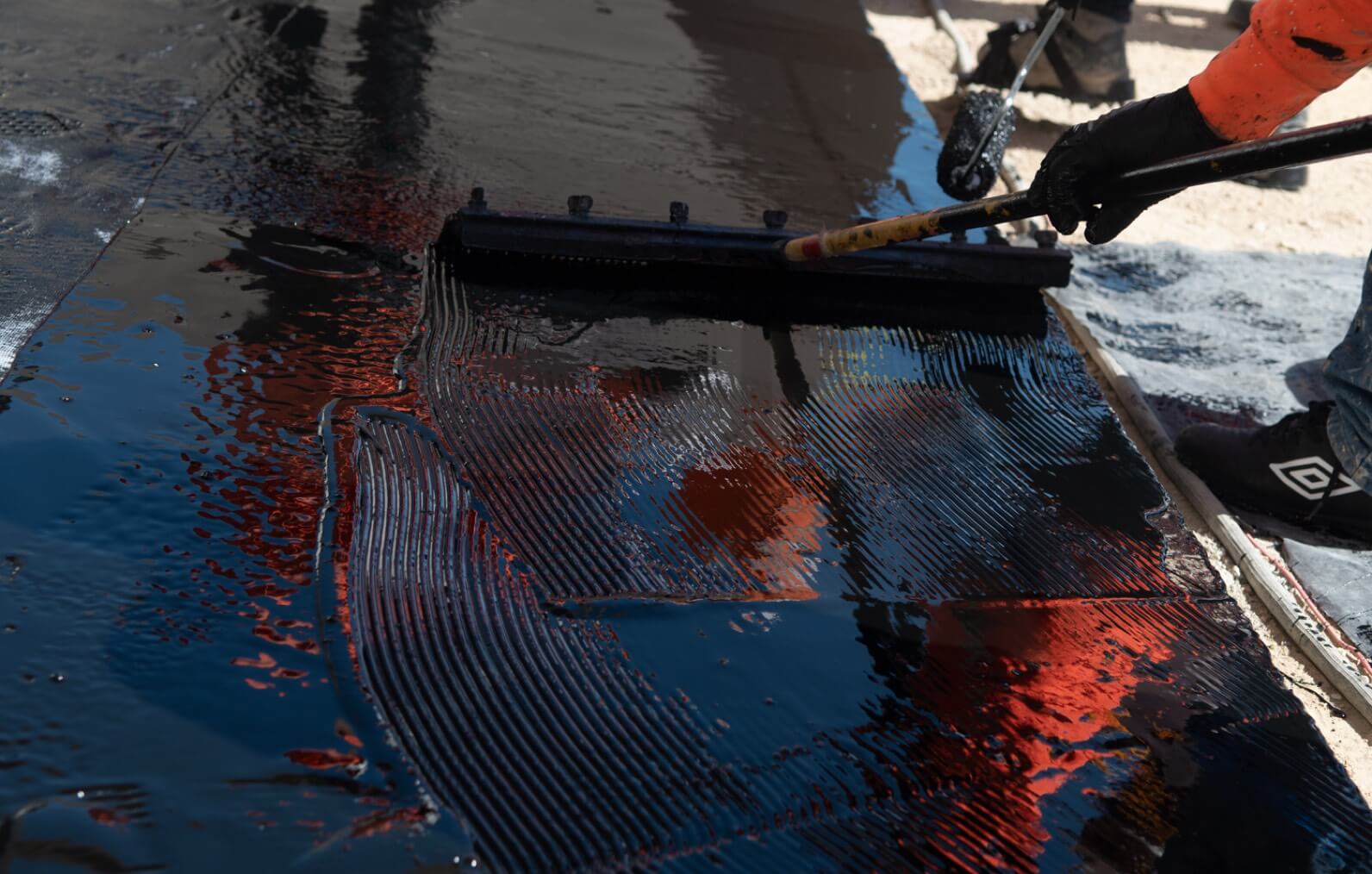

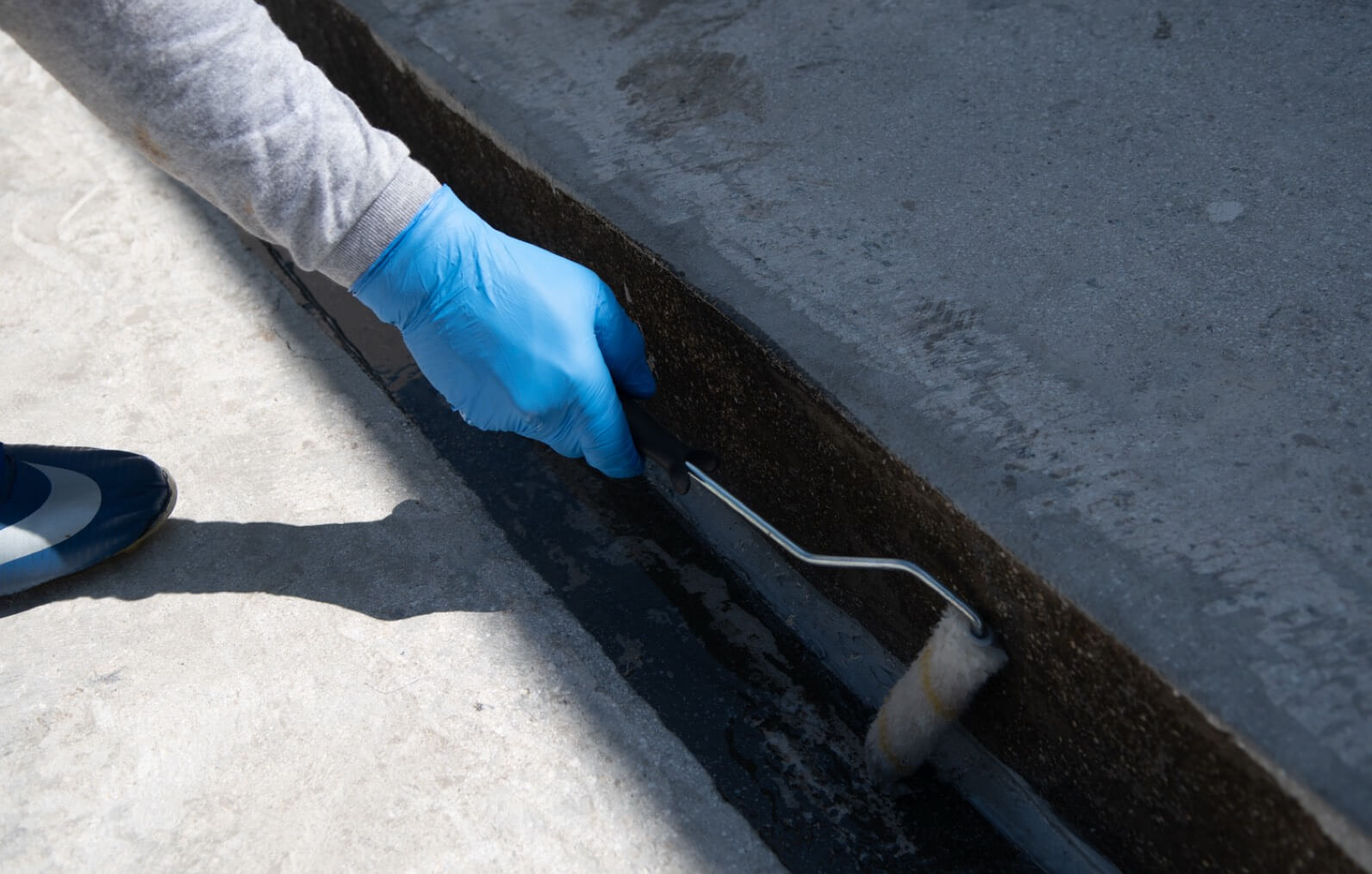

Polycoat Products collaborated with AAI and project stakeholders to specify a fully reinforced system using PC IM-129 at 120 dry mils, paired with PC-FMB vapor barrier and PC-Drain HD drainage mat. In complex planter zones, slab elevation and drainage redesign ensured a continuous membrane installation for long-term performance.
Products Used
- PC IM-129 (fully reinforced)
- PC-IM-120
- PC-FMB vapor barrier
- PC-Drain HD drainage mat
Results

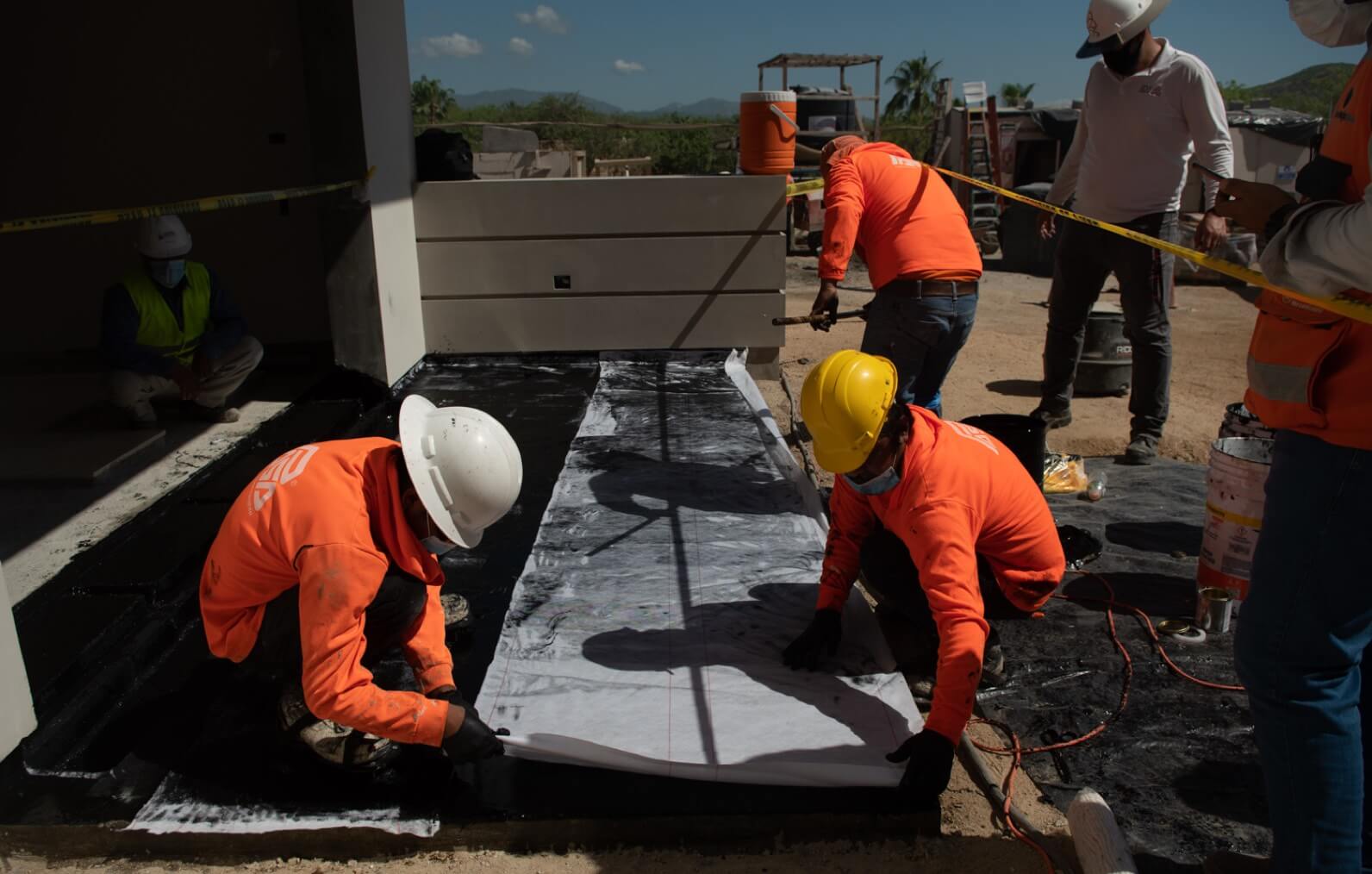

Polycoat’s local support team trained Baja-based contractors Imper Baja Sur and Keffer, who continue to apply the system across the site. With over 200,000 square feet to protect, the multi-year waterproofing installation is already solving infiltration issues while supporting local labor and upholding project quality.
“When Anthony explained the coating system’s properties, I knew this submersible, seamless, monolithic coating would be durable and perform under these harsh conditions.”
-Lyle J. Shive, Senior Consultant, Arnold & Associates, Inc.
